Add a monitor to components

Overview

SUSE® Observability provides monitors out of the box, which provide monitoring on common issues that can occur in a Kubernetes cluster. It’s also possible to configure custom monitors for the metrics collected by SUSE® Observability or application metrics ingested from Prometheus.

Creating a monitor

Steps to create a monitor:

  1. Write the outline of the monitor

  2. Bind the results of the monitor to the correct component

  3. Write the remediation hint

As an example the steps will add a monitor for the Replica counts of Kubernetes deployments.

Write the outline of the monitor

Open the monitors.yaml YAML file of your StackPack in your favorite code editor to change it throughout this guide. You can use the CLI to Test Your StackPack.

For example, this could be the start for a monitor which monitors the available replicas of a deployment:

- _type: Monitor
  arguments:
    metric:
      query: "kubernetes_state_deployment_replicas_available"
      unit: "short"
      aliasTemplate: "Deployment replicas"
    comparator: "LTE"
    threshold: 0.0
    failureState: "DEVIATING"
    urnTemplate:
  description: "Monitor whether a deployment has replicas.
  function: {{ get "urn:stackpack:kubernetes-v2:shared:monitor-function:threshold"  }}
  identifier: urn:stackpack:my-stackpack:monitor:deployment-has-replicas
  intervalSeconds: 30
  name: Deployment has replicas
  remediationHint:
  status: "ENABLED"
  tags:
  - "deployments"

The urnTemplate and remediationHint will be filled in the next steps.

Bind the results of the monitor to the correct components

The results of a monitor need to be bound to components in SUSE® Observability, to be visible and usable. The result of a monitor is bound to a component using the component identifiers. Each component in SUSE® Observability has one or more identifiers that uniquely identify the component. To bind a result of a monitor to a component, it’s required to provide the urnTemplate. The urnTemplate substitutes the labels in the time series of the monitor result into the template, producing an identifier matching a component. This is best illustrated with the example:

The metric that’s used in this example is the kubernetes_state_deployment_replicas_available metric. Run the metric in the metric explorer to observe what labels are available on the time series:

The available replicas in the metric explorer

In the above table it’s shown the metric has labels like cluster_name, namespace and deployment.

Because the metric is observed on deployments, it’s most logical to bind the monitor results to deployment components. To do this, it’s required to understand how the identifiers for deployments are constructed:

  1. In the UI, navigate to the deployments view and select a single deployment.

  2. Open the Topology view, and click the deployment component.

  3. When expanding the Properties in the right panel of the screen, the identifiers will show after hovering as shown below:

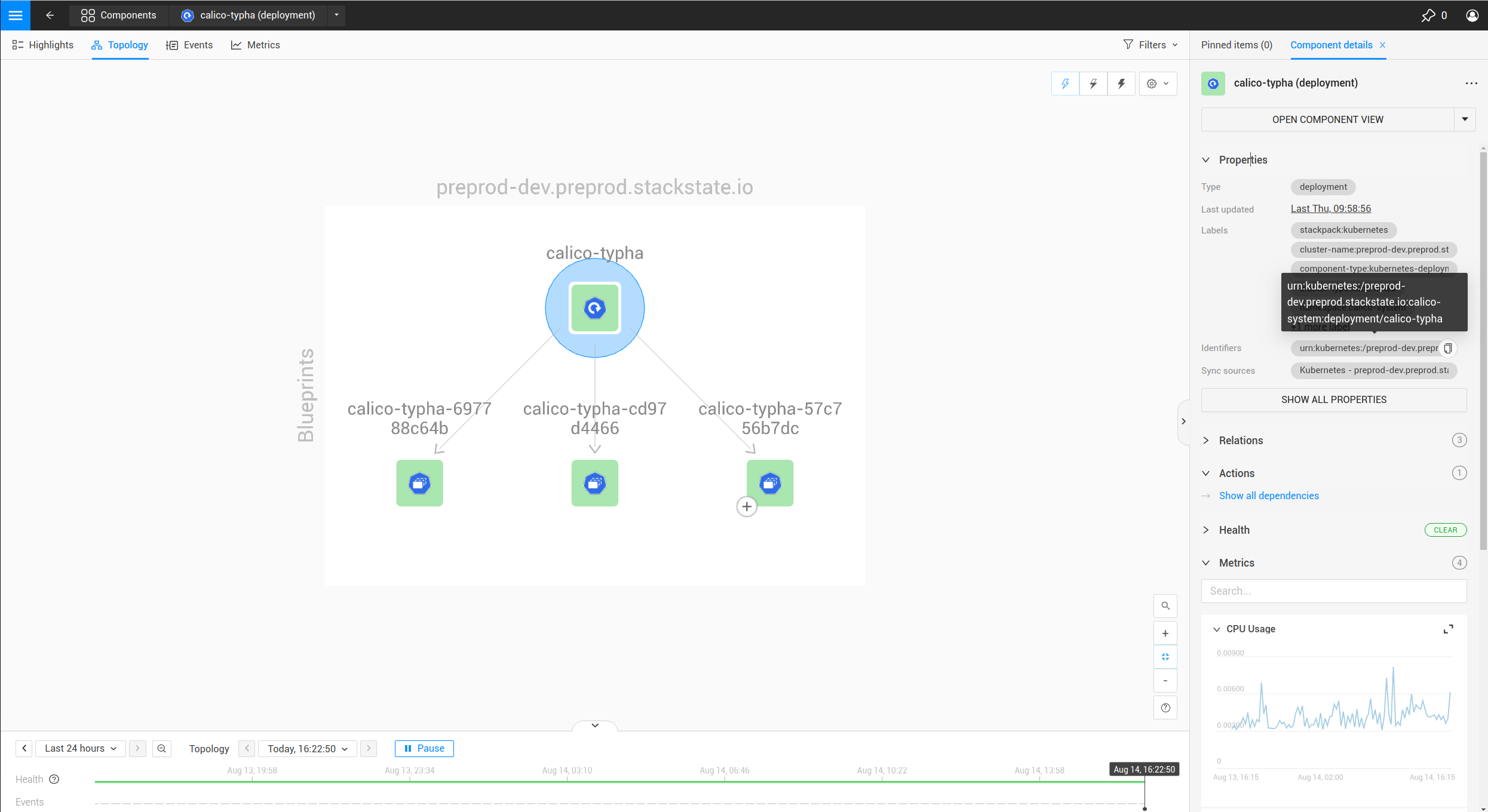

Finding a component identifier

The identifier is shown as urn:kubernetes:/preprod-dev.preprod.stackstate.io:calico-system:deployment/calico-typha. This shows that the identifier is constructed based on the cluster name, namespace and deployment name. Knowing this, it’s now possible to construct the urnTemplate:

  ...
  urnTemplate: "urn:kubernetes:/${cluster_name}:${namespace}:deployment/${deployment}"
  ...

To verify whether the urnTemplate is correct, is explained further below.

Write the remediation hint

The remediation hint is there to help users find the cause of an issue when a monitor fires. The remediation hint is written in markdown. It’s also possible to use the labels that are on the time series of the monitor result using a handlebars template, as in the following example:

  ...
  remediationHint: |-
    To remedy this issue with the deployment {{ labels.deployment }}, consider taking the following steps:

    1. Look at the logs of the pods created by the deployment
  ...

To offer a remediation experience that conforms to that offered by the standard SUSE® Observability monitors, follow the Remediation guide guidelines.

Testing the monitor

After you have made a monitor, validate whether it produces the expected results. The following steps can be taken:

  1. Create or update the monitor in SUSE® Observability

  2. Verify the monitor produces the expected result

Create or update the monitor in SUSE® Observability

  • Use the Test Your StackPack command to deploy the StackPack.

    sts stackpack test -d ./my-stackpack --yes

Verifying the results of a monitor

Verify the execution of the monitor

Go to the monitor overview page (http://your-instance/#/monitors) and find your monitor.

  1. Verify the Status column is in Enabled state. If the monitor is in Disabled state, enable it. If the status is in Error state, you can troubleshoot the error using the CLI.

  2. Verify you see the expected number of states in the Clear/Deviating/Critical column. If this number is significantly lower or higher than the number of components you meant to monitor, the PromQL query might be giving too many results.

Verify the binding of the monitor

Observe whether the monitor is producing a result on one of the components that it’s meant to monitor for. If the monitor doesn’t show up, follow these steps to remedy.
